LY38 Luxury Lodge Tent
The LY-38 Luxury Lodge Tent is a high-end lodge structure designed for boutique hotels and eco-tourism resorts. It offers approximately 38㎡ of interior space with steel framing, integrated walls, and tempered glass panels.
With its advanced insulation and structural strength, it is suitable for four-season operation. The panoramic layout enhances both comfort and visual experience.
The Luxury Lodge Tent series is designed for high-end glamping resorts, boutique hotels, and eco-retreat developments seeking a perfect balance between architectural elegance and outdoor living. Built with a durable steel structure, integrated insulated wall system, and hollow tempered glass, it delivers a modern hospitality solution that blends seamlessly with natural environments.
- Overall Area – 4.8×8.95=42.96㎡
- Indoor Area – 38㎡
- Terrace Area – Custom
- External Height – 4.8m
- Wall Height – 2.7m
- Material – PVDF Coated Fabric, 1050g/㎡
- Roof Load – 25 kg/m²
- Waterproof – 10000mm
- Color – Dark Yellow, Light Beige, Army Green, White, Custom
- Features – Flame Retardant, Waterproof, Fireproof, Mould Proof, UV Resistance, Tear Resistance
- Fixing – Aluminum Strips, Ropes
- Material – PVC Cloth / Fabric Ceiling / Deco.Panel Ceiling (Opt.)
- Waterproof – 5000mm
- Color – Light Beige, Custom
- Features – Flame retardant, mould proof UV resistance
- Fixing – Pipe, Straps
- Fixing With Floor – Wood Strips, Waterproof Sealant
- Wind Resistance – Level 10 (24.5 – 28.4 m/s, 88 – 102 km/h, 48 – 55 kt, 55 – 63 mph)
- Suitable Temperature – -30℃~50℃
- Lifespan – 15-20 Years
- International standard wind resistance, moisture resistance, flexible installation, suitable for various environments
- Poles – Hot-Dip Galvanized Steel Pipe
- Pole Size – 80×80×2.0mm
- Connectors – Hot-Dip Galvanized Steel Pipe
- Connecting with – Self-Tapping Screws (Stainless Steel)
- Poles – ×1 Set
- Connectors – ×1 Set
- Outer Fabric – ×1
- Inner Fabric – ×2
- Integrated Partition Walls – ×37㎡
- Thermal Break Aluminum Insulated Tempered Glass– ×28㎡
- Glass Door – ×1
- GLass Window – ×2

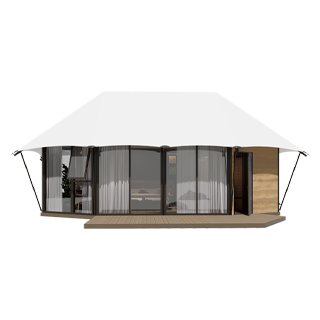

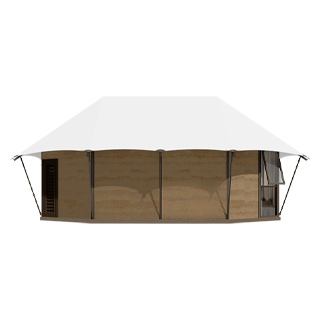

Product Display
Optional Choose
- Size – 5×9m
- Structure – Galvanized Pipe
- Tube Size – 40×60×2.0mm
- Connection Method – Splice (Screws and Nuts)
- Flooring – WPC
- Plank Dimensions – 4000×1000×25mm
- Plank (Indoor Flooring) – 10mm WPC
- Walls – Integrated Partition Walls, Decorative Panels
- Floor – Basic Platform, Indoor Flooring
- Cabinets – Integrated Partition Walls, Decorative Panels
- Ceiling– High-Quality Stretch Fabric Ceiling
- Bathroom – Glass Door, Tiles, Aluminium Wall Panels, Dry and Wet Separation
- Sanitary Ware – Toilet, Washbasin, Shower, Towel Rack
- Bed and Mattress – × 1
- Nightstands – × 2
- Wardrobe – × 1
- Lounge Chair – × 2
- Coffee Table – × 1
- Curtains – × 1
- TV Stand – × 1
- Air Conditioner – Standing, 2P × 1
- Refrigerator – × 1
- Water Heater – × 1
Furniture Samples (Optional)
